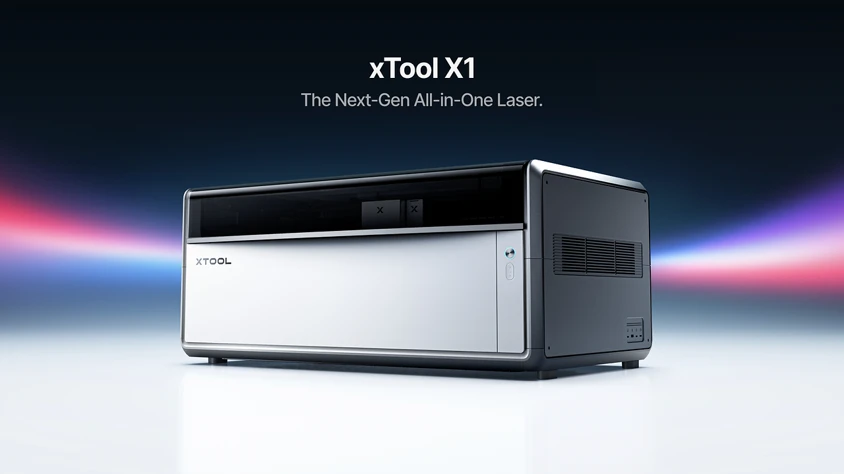

xTool Unveils X1 Hybrid Laser Platform With Swappable Laser Modules

xTool unveiled the X1 on August 27, a desktop laser platform that combines gantry movement and galvo scanning in a single system. Technical articles published in September now explain how its CO2 cutting head and expandable galvo head divide the work, and which laser sources share the same optics.

The X1 supports a 55 W CO2 cutting head and a galvo head with a built-in 20 W blue diode. Its Laser Swap system connects optional 30 W fiber, 60 W MOPA and 5 W UV modules to that galvo head. The CO2 source uses a separate processing head, rather than passing through the same scanner.

Updated October 8, 2026: This report incorporates xTool's September engineering documentation. The company announced an October launch target, but its current preview page still presents the X1 as an upcoming product without a dated shipping schedule or priced bundles.

Hybrid Motion Puts the Galvo on the Gantry

Conventional galvo lasers steer a beam with fast-moving mirrors while the head remains fixed. That makes them well suited to rapid marking, but the lens limits the area the beam can cover from one position. Gantry machines move the laser head across a larger bed, trading some of that speed for reach.

The X1 combines those two approaches. Its galvo head travels on a gantry, with the two motion systems working from the same coordinate map. xTool calls this four-axis arrangement Hybrid Motion and says it can divide a job between gantry movement and local galvo scanning.

In practical terms, the gantry repositions the head across the bed while the galvo handles the faster beam movement within each section. To maintain alignment as the machine moves from one section to the next, xTool says it evaluated more than 50 optical designs, completed over 1,000 calibration tests and developed a separate calibration model for each laser source.

xTool quotes processing speeds of up to 6,000 mm/s across what it describes as a wide-format working area. That is a maximum processing-speed figure, not a CO2 cutting-speed specification or the time needed to finish a complete job. Gantry travel, material settings and the number of passes still affect job time.

For a workshop producing cut signs with dense lettering or decorative patterns, the useful distinction is that outline cutting and fine engraving can be handled on the same bed. The moving scanner is intended to carry detailed engraving beyond a fixed galvo's local field, without requiring the operator to reposition the sheet between sections.

Laser Swap Broadens the Material Range

The X1's other defining feature is Laser Swap, a modular system that routes compatible external laser sources through the galvo head. The announced options are a 30 W fiber module, a 60 W MOPA module and a 5 W UV module, in addition to the diode built into that head.

The modules mount at the rear and feed into a shared optical path. This gives the platform a route into applications that would ordinarily require separate machines, from cutting common sheet materials to marking metals and processing materials that benefit from UV.

This modular approach is central to xTool's positioning of the X1. Rather than building the machine around one fixed source, the company is presenting it as a platform that can be expanded as a workshop's material and production needs change. xTool says each laser source uses its own calibration model, with automatic calibration intended to simplify switching between modules.

The September documentation also clarifies a limit to the multi-laser layout: sources operate in sequence, not simultaneously. A job can switch between compatible sources while retaining the same workpiece coordinates, but one X1 does not provide the parallel capacity of several separate machines.

The final bundle contents also need to be distinguished from the platform's capabilities. xTool's Hybrid Motion explainer describes the 20 W diode galvo head as optional. Support for fiber, MOPA and UV therefore does not mean that every X1 package includes all those sources, or that existing modules from other xTool machines will fit the X1.

A Frame Designed for Hybrid Motion

Moving an optical scanner across a gantry places different demands on the frame than a fixed galvo system. xTool says the UniCast Frame is formed from automotive-grade aluminum alloy using a 4,000-ton high-pressure die-casting process. Three monolithic sections replace nearly 100 assembled parts and more than 268 screws, reducing the number of joints in the structure. According to the company, this is intended to improve precision, thermal stability and durability during sustained operation.

Atomm Sits Across the Wider xTool Range

Alongside the X1 hardware, xTool highlighted Atomm, its existing design and project platform, which the company describes as the "intelligent digital engine" across its hardware portfolio. Atomm brings together AI-assisted design, project files, material parameters and previews for workflows spanning printing, engraving, cutting and textile decoration. It is part of xTool's wider software ecosystem rather than an X1-only feature.

Launch Status in October

xTool initially targeted October 2026 for the X1 launch. Its German announcement outlined a deposit phase at the end of September and retail availability at the end of October. Those were planned milestones, rather than confirmation that orders or deliveries had begun. At our October 8 check, the public preview page had no order button, priced bundles or firm shipping date.

xTool listed the X1 for its IFA Berlin presentation from September 4 to 8. Its September technical articles now give a more detailed account of the optical layout and module system than was available at the August reveal.

xTool also maintains an official Facebook group for small-business users for product updates and community discussion.

The X1 takes a different approach from dedicated CO2 cutters such as the Bambu Lab R1: it adds a moving galvo and a route to other laser wavelengths alongside sheet cutting. For mixed work that could reduce transfers between machines. For a workshop running cutting and marking jobs at the same time, separate machines would still have a capacity advantage. Bed dimensions, final bundle contents and a confirmed delivery schedule remain important details for the commercial launch.
